200 Series Info Source and Common Parts Run Items
Here is where you will find Answers to those questions you have.... if its not here, just ask!
We hope to create a go to source here for you to use anytime to help along with your J200 or J201 build. Below you will find it categorized and grouped as best as possible. First however, will be a living list of parts numbers for that parts store run you'll inevitably wind up making sooner or later.
Parts Run 01
Oils/Lubricants
Engine Oil Type: 0w-20 Synthetic @ 7.4 Quarts for service change
Transmission Fluid: Toyota WS ATF @ 11.5 Quarts
Transfercase Fluid: 75w-90 @ 1.5 Quarts
Brake Fluid: DOT 3 or Dot 4 works
Front Diff: SAE 75w-85 GL-5 @ 2 Quarts
Rear Diff: SAE 75w-85 GL-5 @ 4.39 Quarts
Powersteering Fluid: ATF Type 3/ Dexron III
Chassis Grease: Lithium Base NLG12 or Molybdenum NLG12
Parts Run 02
Filters & Antifreeze
Engine Oil Filter: Toyota OEM PN# 90915-YZZD3
Engine Air Filter: Toyota OEM PN# 17801-38051
Cabin Air Filter: Toyota OEM PN# 87139-50100
Antifreeze Coolant: Toyota Super Long Life Coolant (SLLC) ( Pink 50/50 Pre mix)/ ALTERNATIVE: ZEREX by Valvoline Asian Vehicle Red in Pre-Diluted 5-/50 Mix
Parts Run 03

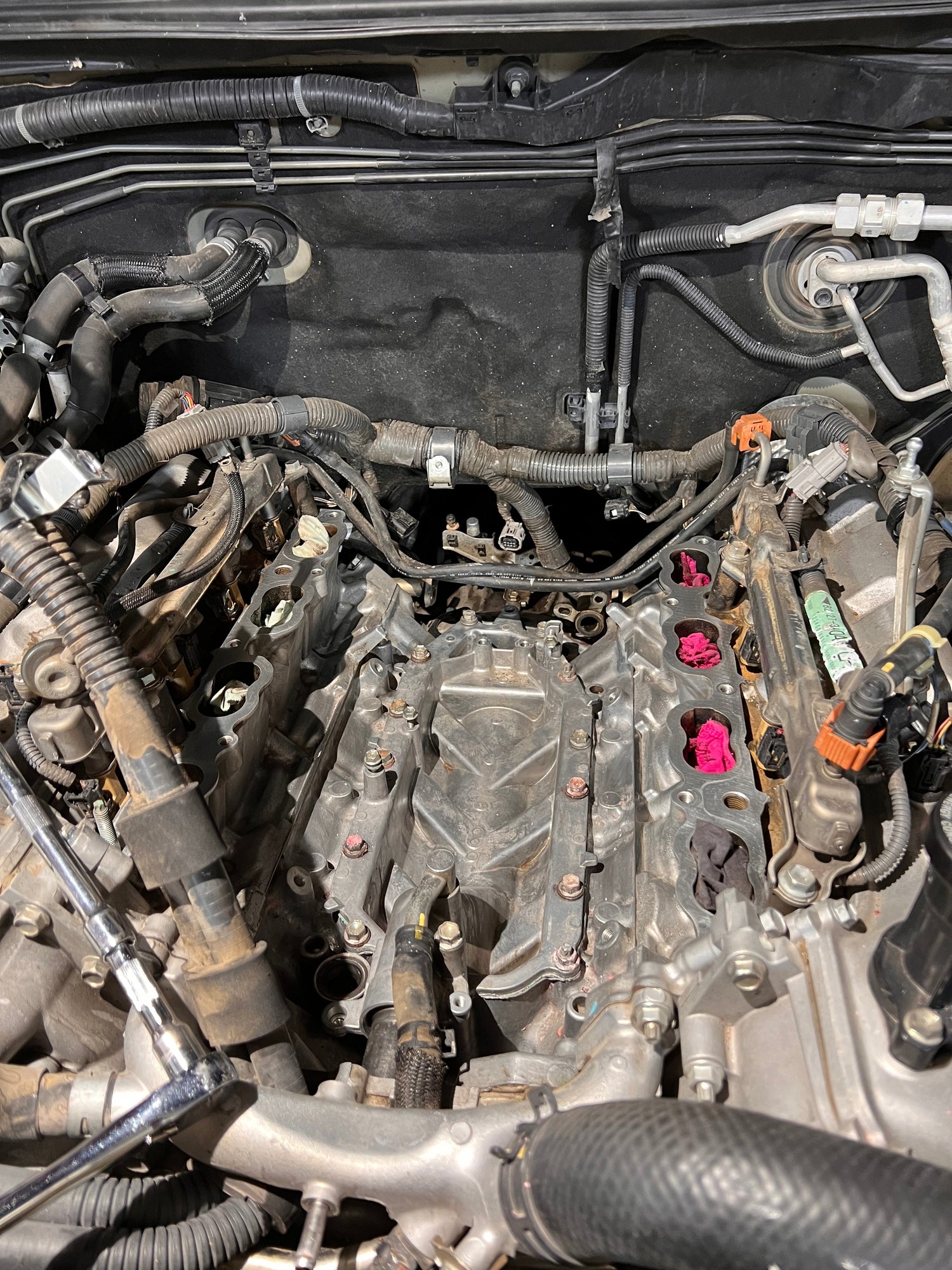

Common Engine Parts
Battery: Group Size 27
Surpentine Belt: Best Option is the Gates Belt PN# NBH 25080948HD
Spark Plugs (x8): DENSO SK20HR11 or the NGK IFR6T11 gapped at .044"
