Lexus GX460 4.6L Valley Plate Gasket | J2Hundy Valley Guard 1UR-FE

A purpose-built gasket solution for the Lexus GX460 valley plate coolant leak.

Dealing with unexplained coolant loss, dried pink coolant residue, or a suspected valley plate leak on your Lexus GX460?

The Toyota/Lexus 4.6L 1UR-FE V8 has a coolant passage cover hidden beneath the intake manifold. When the original sealing interface begins leaking, reaching it requires substantial disassembly.

And once you're there, the last thing you want is to revisit the same repair.

J2Hundy Valley Guard offers a different approach.

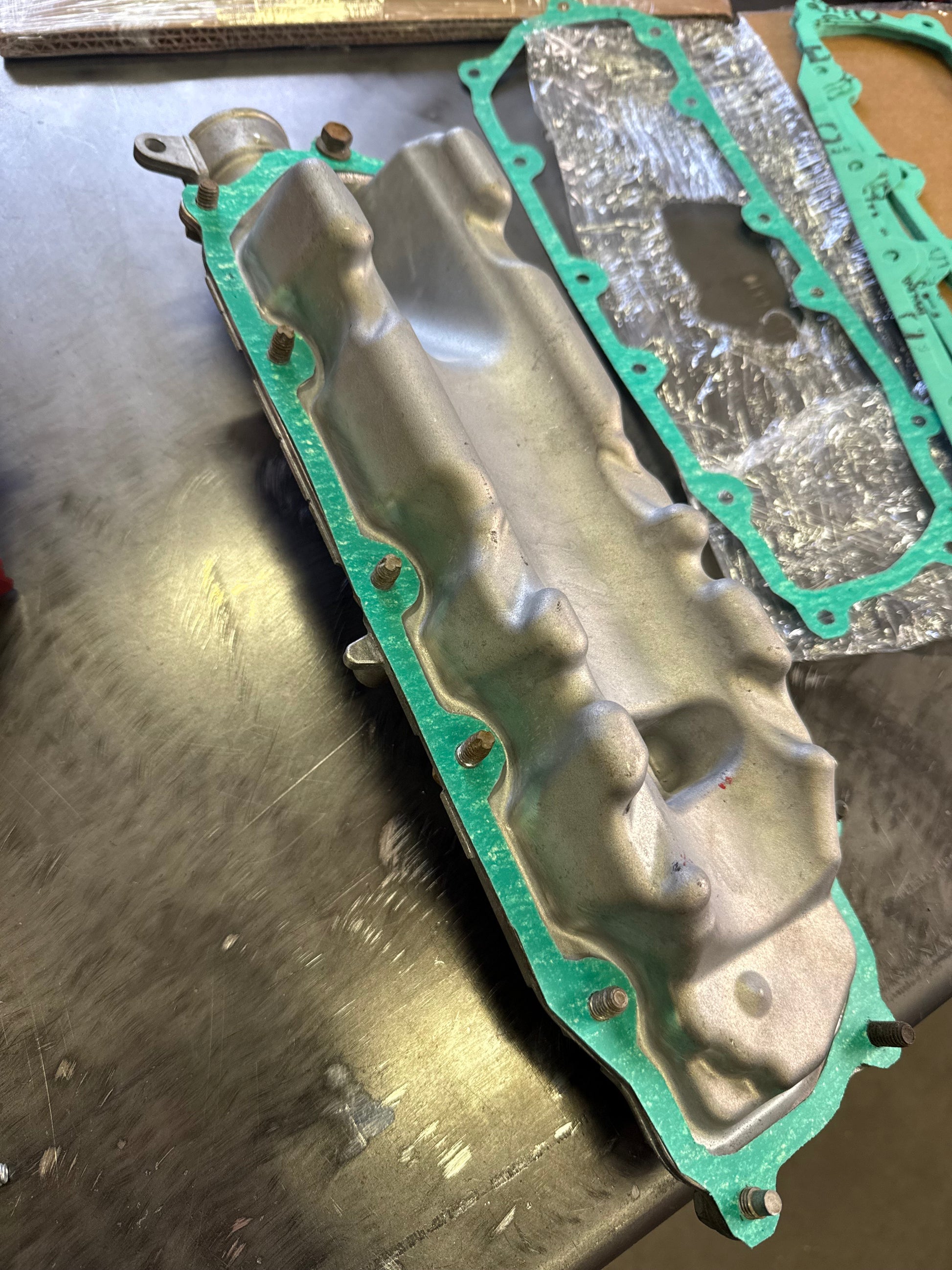

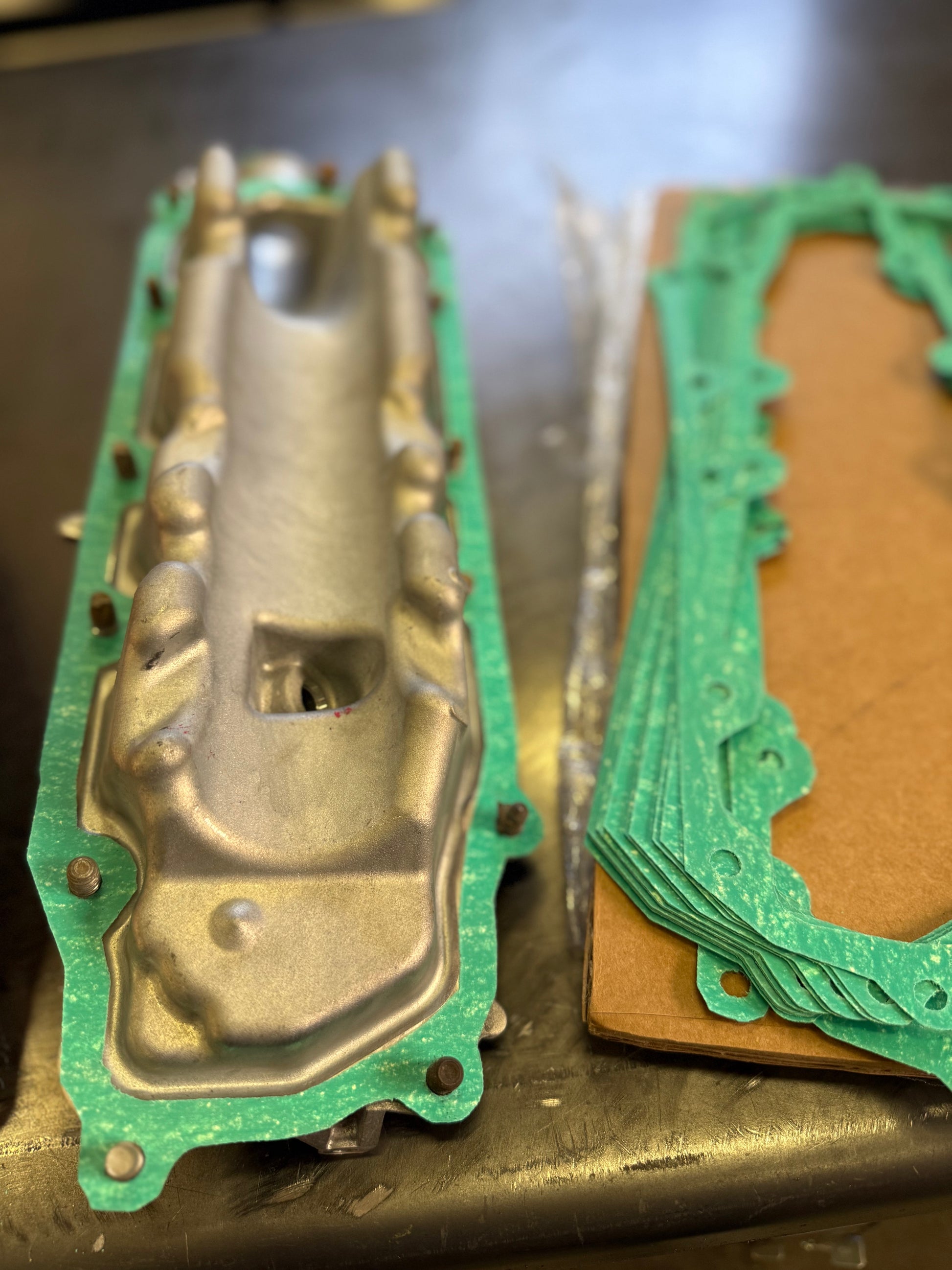

Our precision-cut 4.6L Valley Guard gasket adds a dedicated, coolant-resistant gasket layer between the engine valley cover and its mating surface, installed with a thin application of Permatex High Temp Gray RTV.

Instead of relying exclusively on liquid sealant, Valley Guard provides a purpose-built gasket-assisted repair option.

Designed for the 4.6L 1UR-FE. Built for mechanics who take their repairs seriously.

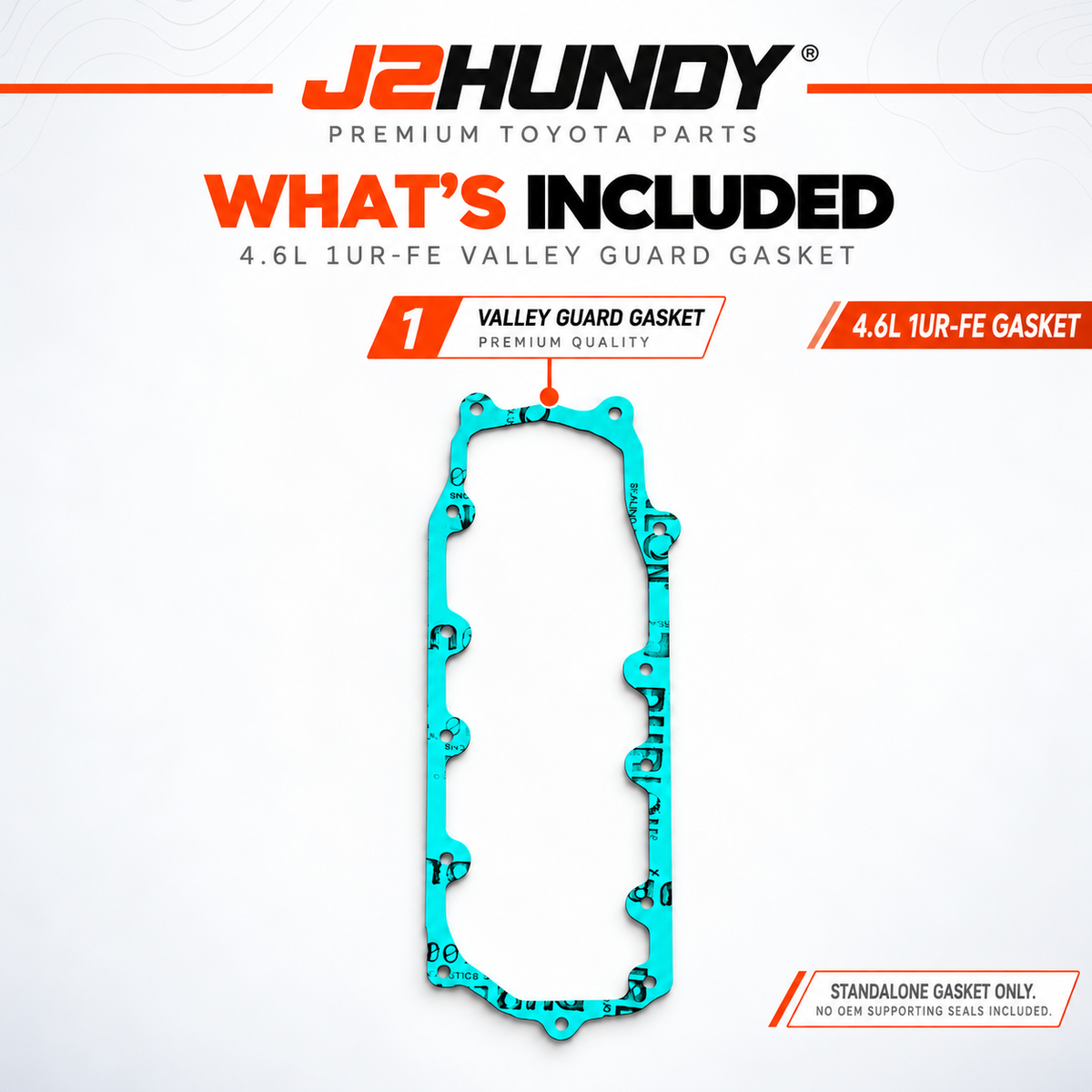

What's Included — Gasket Only

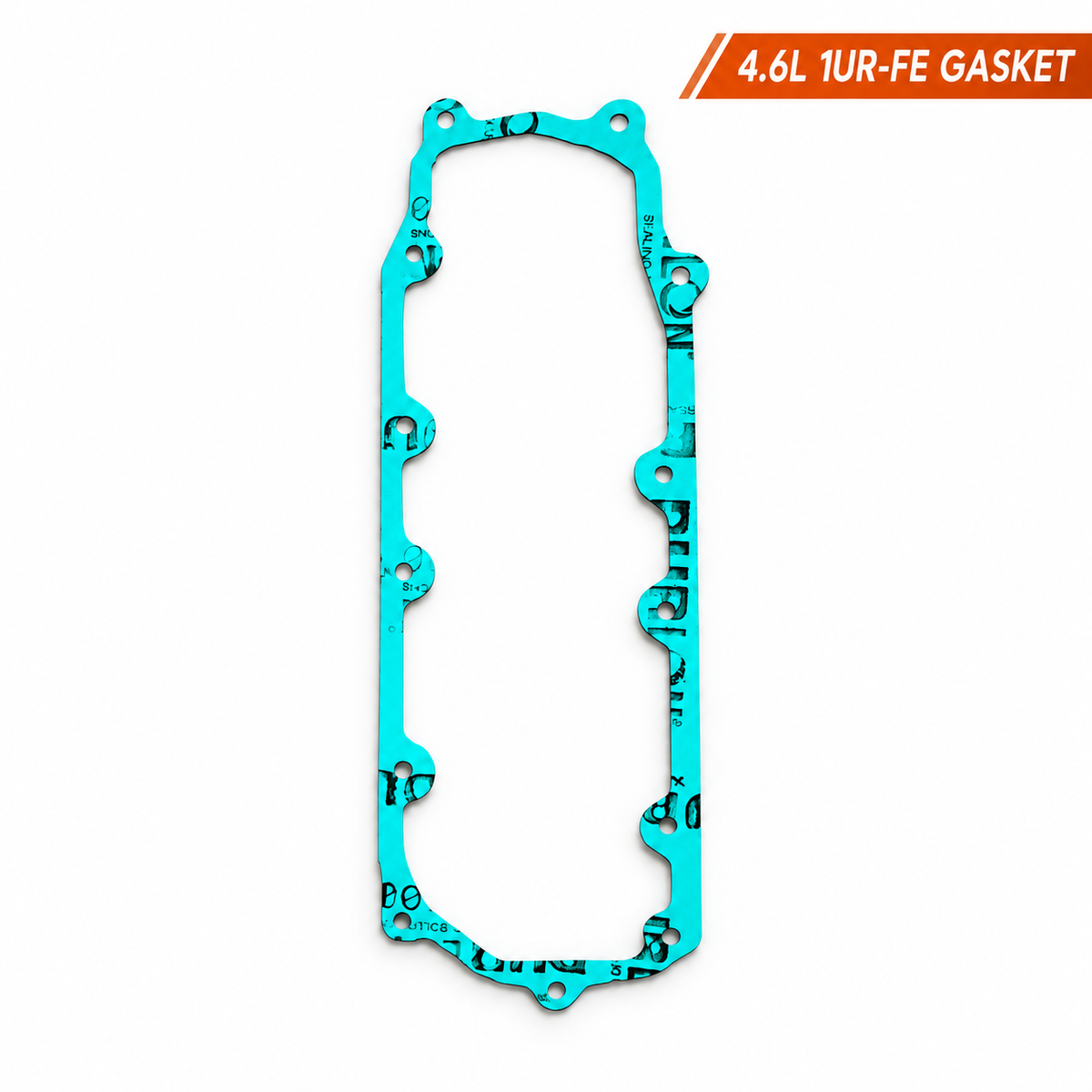

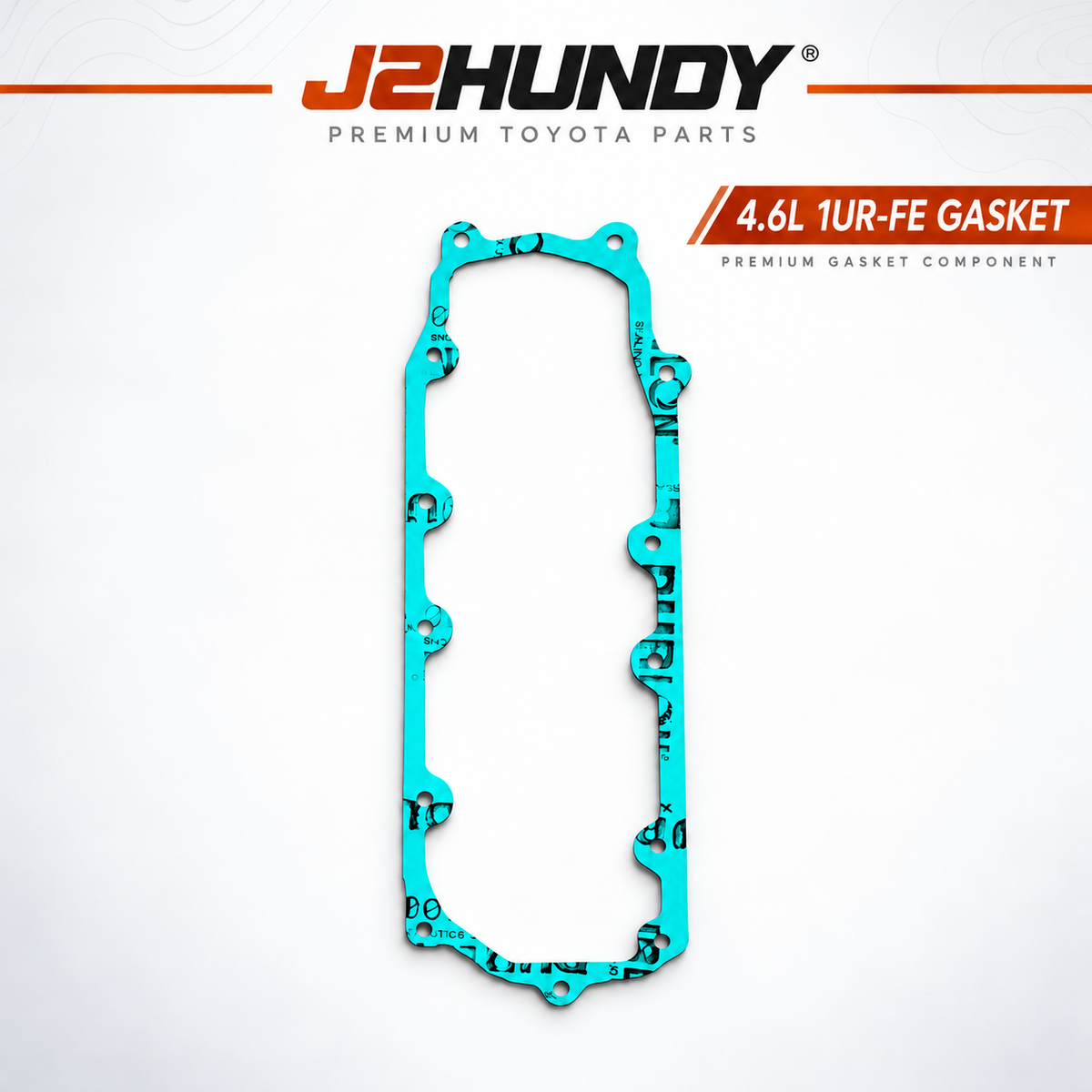

(1) J2Hundy 4.6L 1UR-FE Valley Guard Gasket

This product includes the individual Valley Guard gasket only.

Not included:

• Genuine Toyota intake manifold gaskets

• Toyota water pipe O-rings

• Permatex High Temp Gray RTV

• Coolant or other repair supplies

Need the supporting seals?

Choose our J2Hundy 4.6L Valley Guard Complete Service Kit, which includes this same Valley Guard gasket along with genuine Toyota intake manifold gaskets and water pipe O-rings.

Why Choose Valley Guard Instead of RTV Alone?

The Original Factory Sealing Method

Toyota's original engine valley cover uses formed-in-place liquid sealant between the cover and engine mating surfaces.

Over years of heating, cooling, and normal engine operation, the sealing interface can deteriorate, allowing coolant to escape into the engine valley.

Because the cover is located beneath the intake manifold, repairing a leak can involve significant labor.

The J2Hundy Valley Guard Difference

Valley Guard introduces a dedicated mechanical gasket layer to the original sealing interface.

The gasket is precision-cut for the intended 4.6L 1UR-FE valley cover and installed with Permatex High Temp Gray RTV according to J2Hundy's installation instructions.

Instead of depending on RTV alone, this method combines a physical gasket with liquid sealant.

What Makes Valley Guard Different?

• Engine-specific design: Precision-cut for the 4.6L 1UR-FE valley heat exchanger cover configuration.

• Dedicated gasket layer: Adds a physical sealing material between the mating surfaces.

• Coolant-resistant material: Selected for exposure to automotive cooling-system conditions.

• Ultra-thin construction: 1/64-inch profile for the intended sealing interface.

• Premium material: Manufactured from Durlon 8500 compressed non-asbestos gasket sheet.

• Installation guidance: J2Hundy provides instructions covering preparation, gasket placement, and RTV application.

Valley Guard is a J2Hundy aftermarket gasket-assisted sealing solution. It is not a genuine Toyota gasket or a guarantee against all future coolant leaks.

Engineered for the Toyota/Lexus 1UR-FE V8

The J2Hundy Valley Guard gasket is precision-cut from Durlon 8500, a premium gasket material made from aramid and inorganic fibers bonded with a nitrile rubber (NBR) binder.

This material is selected for its sealing properties and resistance to demanding fluid and temperature conditions.

Technical Specifications

Specification	J2Hundy Valley Guard 4.6L
Engine application	Toyota/Lexus 4.6L 1UR-FE V8
Installation location	Engine valley coolant cover
Gasket material	Aramid and inorganic fiber with NBR binder
Construction
Material thickness	1/64 inch
Published continuous material temperature rating	Up to 548°F (287°C)
Published maximum material pressure rating	1,500 psi
Required installation sealant	Permatex High Temp Gray RTV — sold separately

Temperature and pressure ratings are published properties of the gasket material. They do not represent cooling-system operating specifications or guaranteed installed-joint performance.

Vehicle Fitment — Lexus GX460 & Toyota 4.6L 1UR-FE

Designed for the Toyota/Lexus 4.6L 1UR-FE V8 valley cover configuration, including:

• Lexus GX460 — 4.6L 1UR-FE V8, subject to compatible valley cover configuration

• Other Toyota/Lexus 1UR-FE applications — Where the valley cover and gasket configuration have been verified to match

Important fitment information:

This gasket is specifically cut for the 4.6L 1UR-FE application and is not interchangeable with our 5.7L 3UR-FE gasket.

Certain Lexus models, including the North American LS460, use the 1UR-FSE engine rather than the 1UR-FE. Fitment with those vehicles must be independently verified before ordering.

Not sure which gasket fits your vehicle? Contact J2Hundy before purchasing.

Individual Gasket or Complete Service Kit?

Choose the Individual 4.6L Valley Guard Gasket if:

• You already have the correct Toyota intake manifold gaskets and water pipe O-rings.

• You're a professional repair shop sourcing your own OEM parts.

• You only need the Valley Guard gasket for a planned valley cover repair.

• You're preparing for the repair and already have your other required parts.

Choose the 4.6L Complete Service Kit if:

• You need fresh intake manifold gaskets.

• You need replacement water pipe O-rings.

• You want the J2Hundy gasket and genuine Toyota supporting seals in one purchase.

Both options contain the same J2Hundy 4.6L Valley Guard gasket.

Installation Information

Experienced DIY mechanical skills or professional installation are recommended.

Correct leak diagnosis and careful installation are essential.

1. Confirm the coolant leak originates from the engine valley cover sealing interface.

2. Remove the original sealant and thoroughly clean the mating surfaces.

3. Inspect the valley cover and mating surfaces for damage or irregularities.

4. Confirm gasket alignment and follow the J2Hundy installation instructions.

5. Apply Permatex High Temp Gray RTV using the method specified by J2Hundy.

6. Follow appropriate Toyota/Lexus procedures for bolt torque, sealant curing, and cooling-system pressure testing before completing reassembly.

Installation guide: J2Hundy Valley Guard Technical Library

Important: Intake manifold gaskets, water pipe O-rings, RTV, and other supporting repair supplies are not included with this individual gasket.

Frequently Asked Questions

What are the symptoms of a Lexus GX460 valley plate coolant leak?

Possible symptoms include unexplained coolant loss, dried pink coolant residue, or coolant leaking down the rear of the engine. These symptoms can also have other causes, so confirming the leak source is important.

Does this gasket replace the original Toyota RTV?

Valley Guard adds a dedicated gasket layer to the sealing interface. It is installed with Permatex High Temp Gray RTV, rather than installed dry.

Is this a genuine Toyota gasket?

No. Valley Guard is a J2Hundy aftermarket gasket developed specifically for the intended Toyota/Lexus engine valley cover configuration.

Does the gasket include Toyota intake manifold gaskets or water pipe O-rings?

No. This listing includes one J2Hundy Valley Guard gasket only. Our 4.6L Complete Service Kit includes the additional Toyota supporting seals.

Will it fit a Lexus LS460?

Not without compatibility verification. Many LS460 models use the 1UR-FSE engine, which differs from the GX460's 1UR-FE. Contact J2Hundy before ordering for an LS460.

Can I install this gasket myself?

Experienced DIY mechanics can perform the repair with the appropriate tools, service information, and technical ability. Professional installation is recommended if you're unfamiliar with the engine valley repair procedure.

Will this gasket fit the Toyota 5.7L V8?

No. The 5.7L 3UR-FE uses a different Valley Guard gasket design. Select the J2Hundy 5.7L Valley Guard product for that engine.

Protect the Work. Seal the Valley. Get Back on the Road.

At J2Hundy Outfitters, we believe mechanical products should be developed with real-world service and repair challenges in mind.

The Valley Guard gasket was developed around a simple principle: when a component requires significant labor to access, the sealing solution deserves careful consideration.

Whether you're servicing your own Lexus GX460 or repairing a customer's Toyota V8, Valley Guard offers a purpose-built gasket-assisted approach to sealing the engine valley cover.

J2Hundy Valley Guard — Purpose-built sealing for the engines we depend on.
