J2Hundy Valley Guard Seal

A Preventative Reliability Upgrade for the 3UR-FE

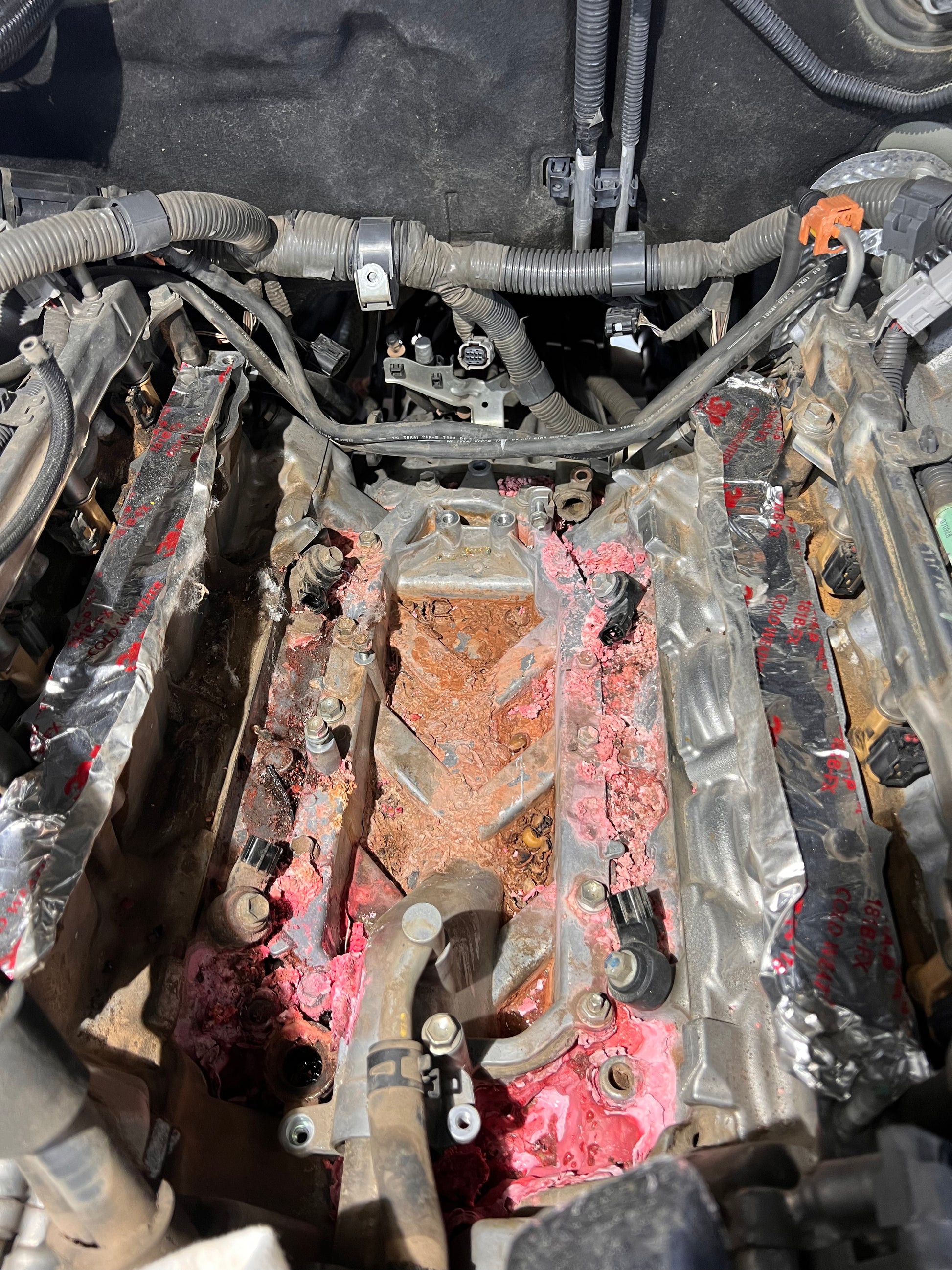

Engine valley leaks on the Toyota 5.7L 3UR-FE are one of the most labor-intensive and costly failures on the platform. Once coolant begins pooling in the valley, repairs are time-consuming—and repeating the job is something no owner or technician wants to do.

The J2Hundy Valley Guard Seal was developed to address this problem at its source.

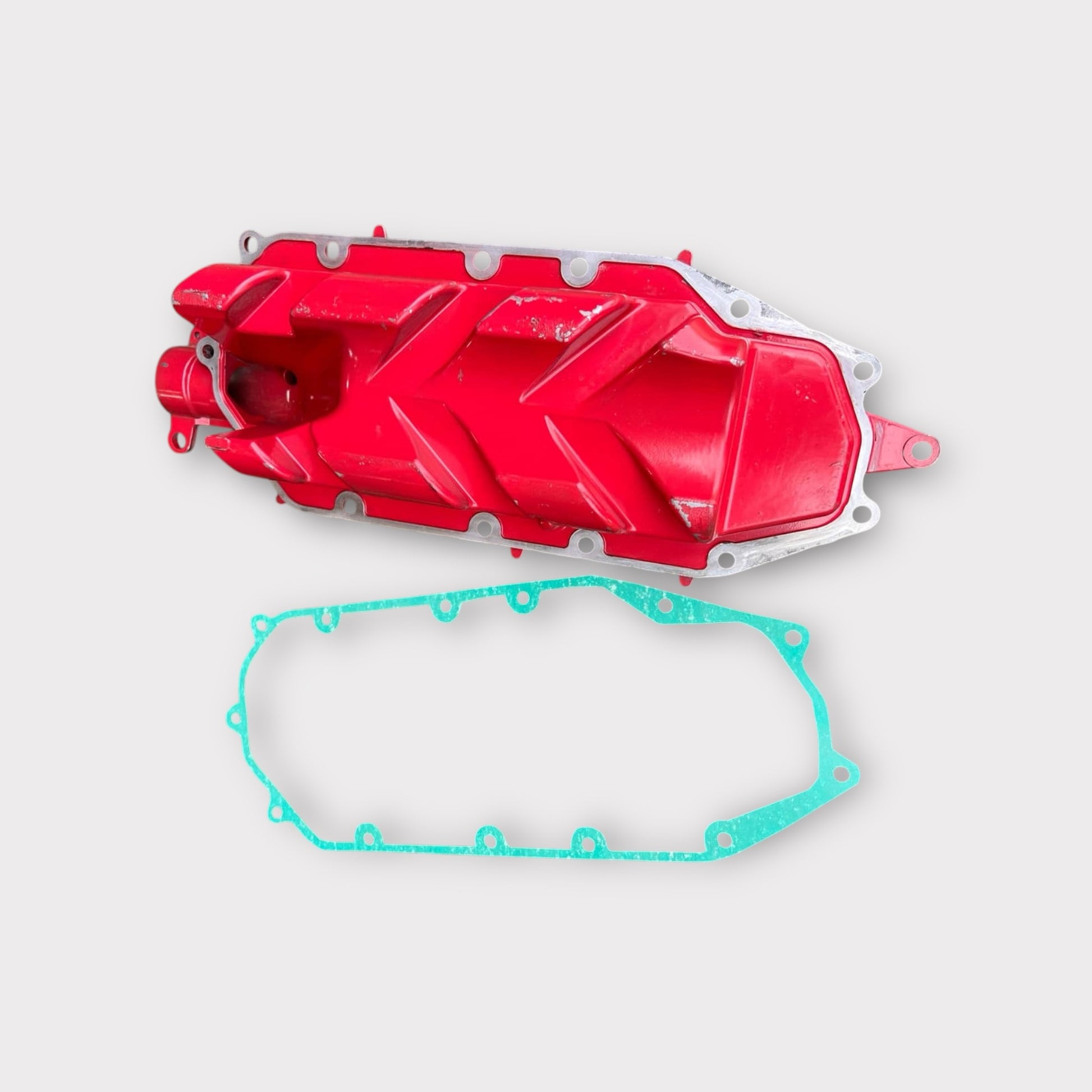

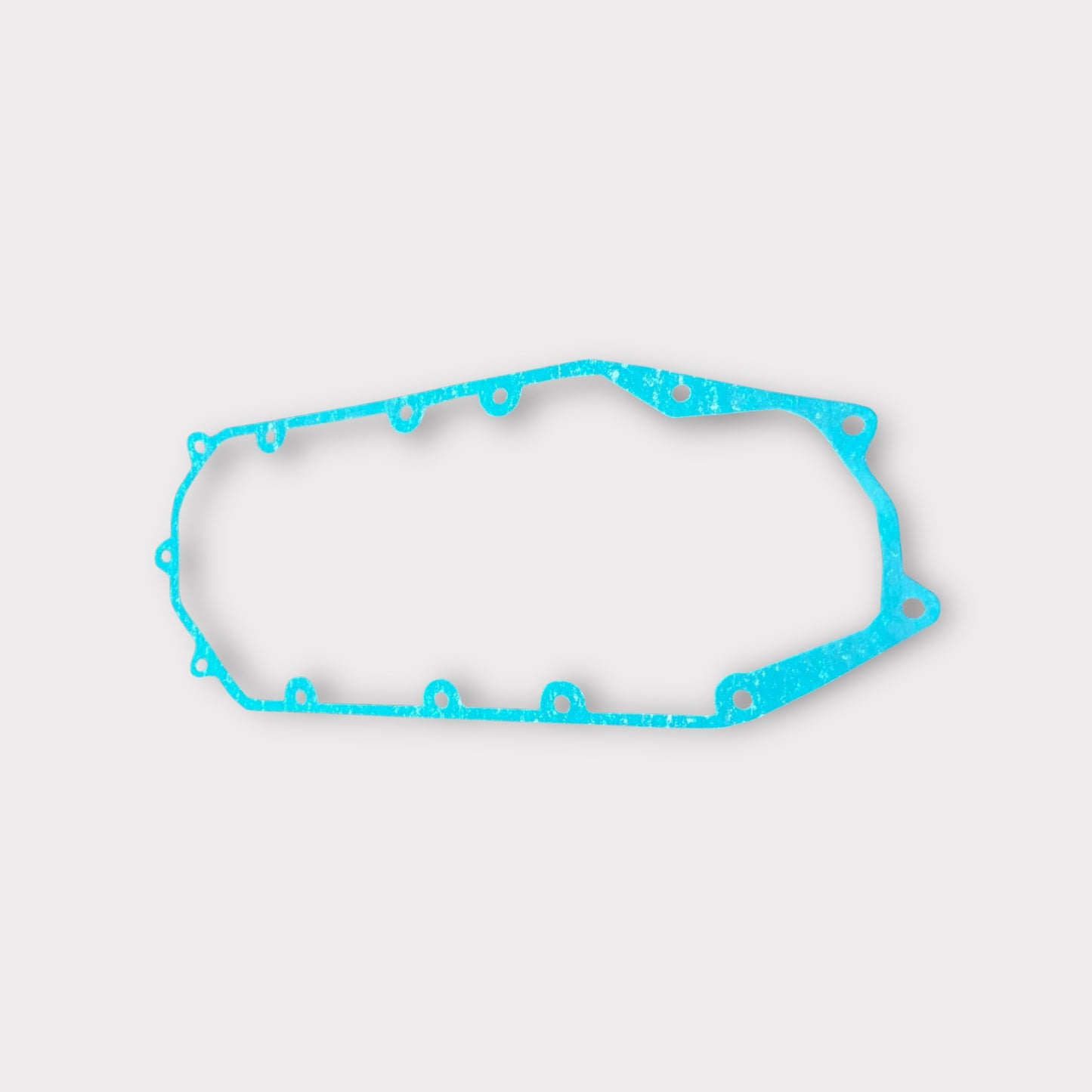

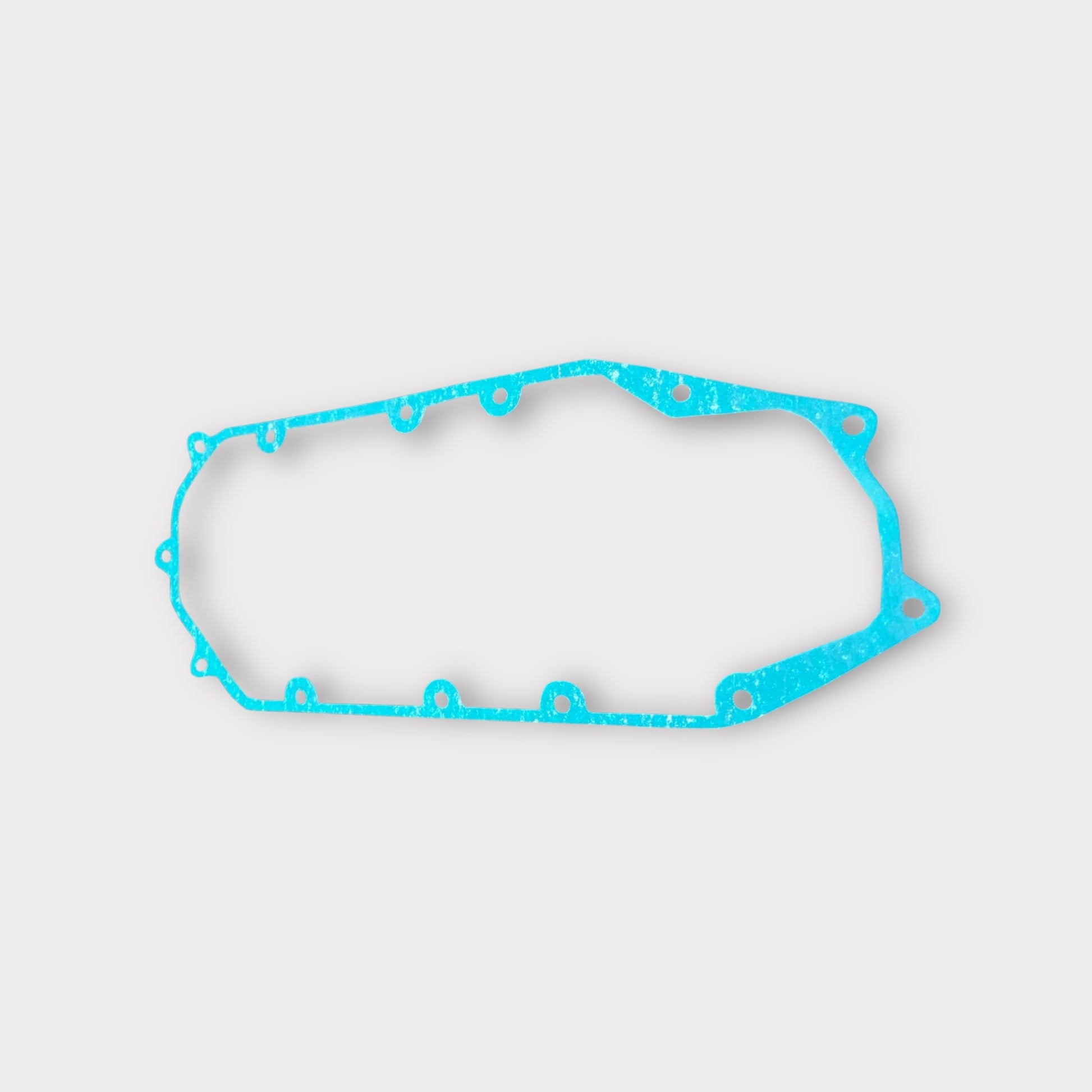

This is not a temporary fix or a generic replacement. It is a purpose-built valley heat exchanger cover seal, designed to deliver long-term sealing performance under the extreme heat, pressure, and chemical exposure conditions found in the engine valley.

Engineered for the 3UR-FE Platform

The Valley Guard Seal is precision-engineered specifically for Toyota’s 5.7L 3UR-FE engine, found in:

• Toyota Land Cruiser 200

• Lexus LX570

• Toyota Tundra (3UR-FE)

• Toyota Sequoia (3UR-FE)

Fitment, material selection, and sealing characteristics are tailored to the unique thermal and mechanical demands of the engine valley—not adapted from a universal gasket design.

Advanced Materials, Built for Long-Term Service

The Valley Guard Seal is constructed using high-strength aramid and inorganic fibers, bonded with premium Nitrile (NBR) rubber for excellent chemical resistance and dimensional stability.

This material combination is chosen specifically to withstand:

• Prolonged exposure to Toyota Super Long Life Coolant

• Repeated heat cycling in confined engine valley conditions

• High clamping loads and pressure fluctuations

Performance Ratings:

• Pressure resistance: up to 1500 psi

• Continuous temperature rating: up to 548°F (287°C)

These characteristics make the Valley Guard Seal suitable for long-term service—not just initial installation.

Designed to Fix It Once

Accessing the engine valley requires significant disassembly and labor. Reusing worn seals or installing marginal replacements risks repeating the entire job later.

The Valley Guard Seal is intended for:

• Valley plate service

• Intake removal service

• Preventative maintenance during major engine work

• “While-you’re-in-there” reliability upgrades

If you’re already opening the valley, this seal is designed to be installed once—and trusted long-term.

Key Benefits

• Purpose-built for the 3UR-FE – No universal compromises

• Excellent chemical resistance – Compatible with Toyota extended-life coolant

• High temperature and pressure capability – Designed for harsh valley conditions

• Precision fitment – Proper compression and sealing across the mating surface

• Protects labor investment – Helps prevent repeat valley service

Who This Seal Is For

• 3UR-FE owners addressing an active valley leak

• DIY owners performing preventative maintenance

• Independent shops and technicians who want reliable, repeatable results

• Land Cruiser and Lexus owners who value long-term reliability over shortcuts

A Smarter Way to Protect Your Engine

When valley service labor can exceed $1,200–$4,500, the seal itself is not the place to cut corners.

The J2Hundy Valley Guard Seal represents a small investment in comparison—designed to help protect your time, your engine, and your peace of mind.

Fix it once. Drive with confidence.
