Toyota 5.7L 3UR-FE Valley Plate Gasket | J2Hundy Valley Guard

A purpose-built gasket solution for the Toyota 5.7L valley plate coolant leak.

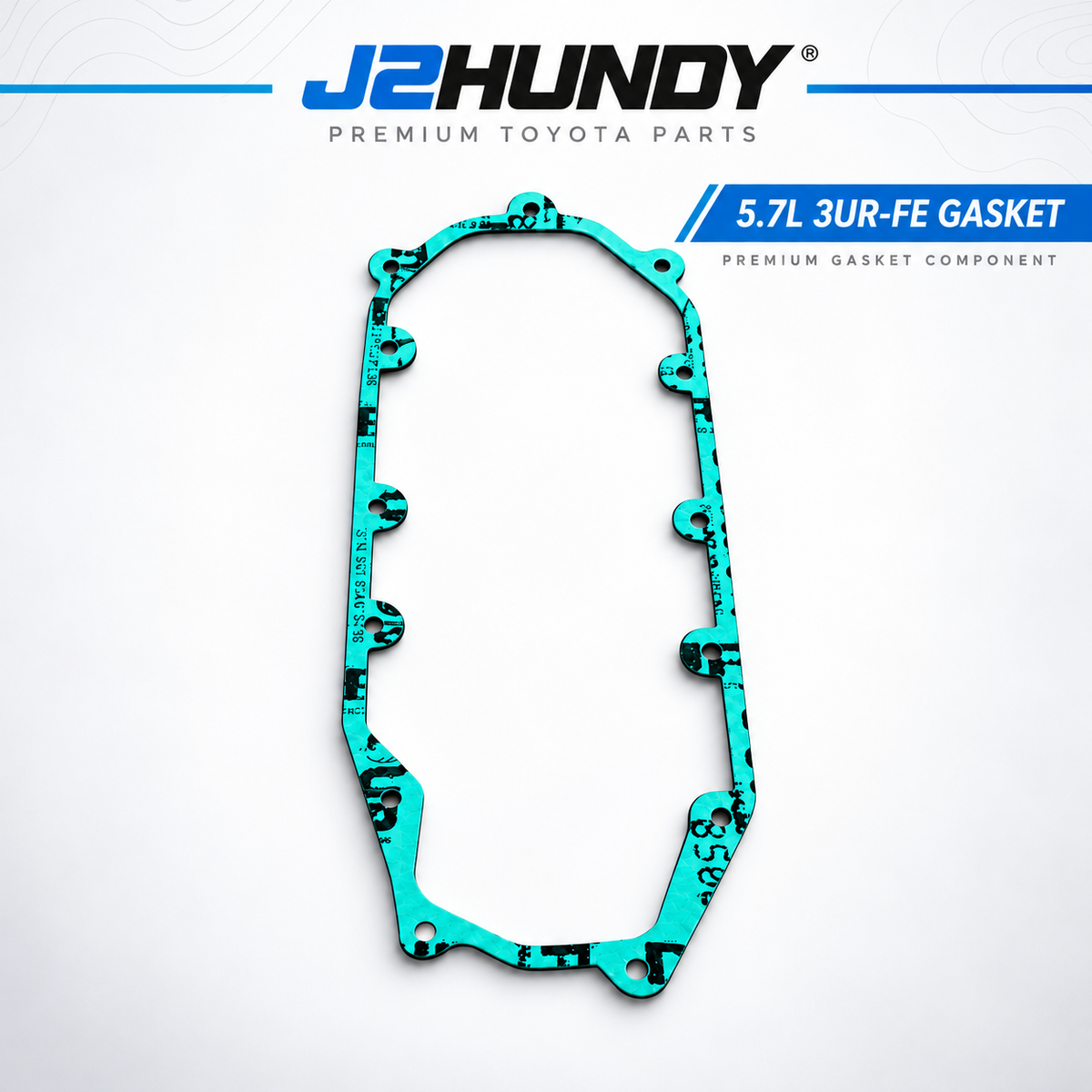

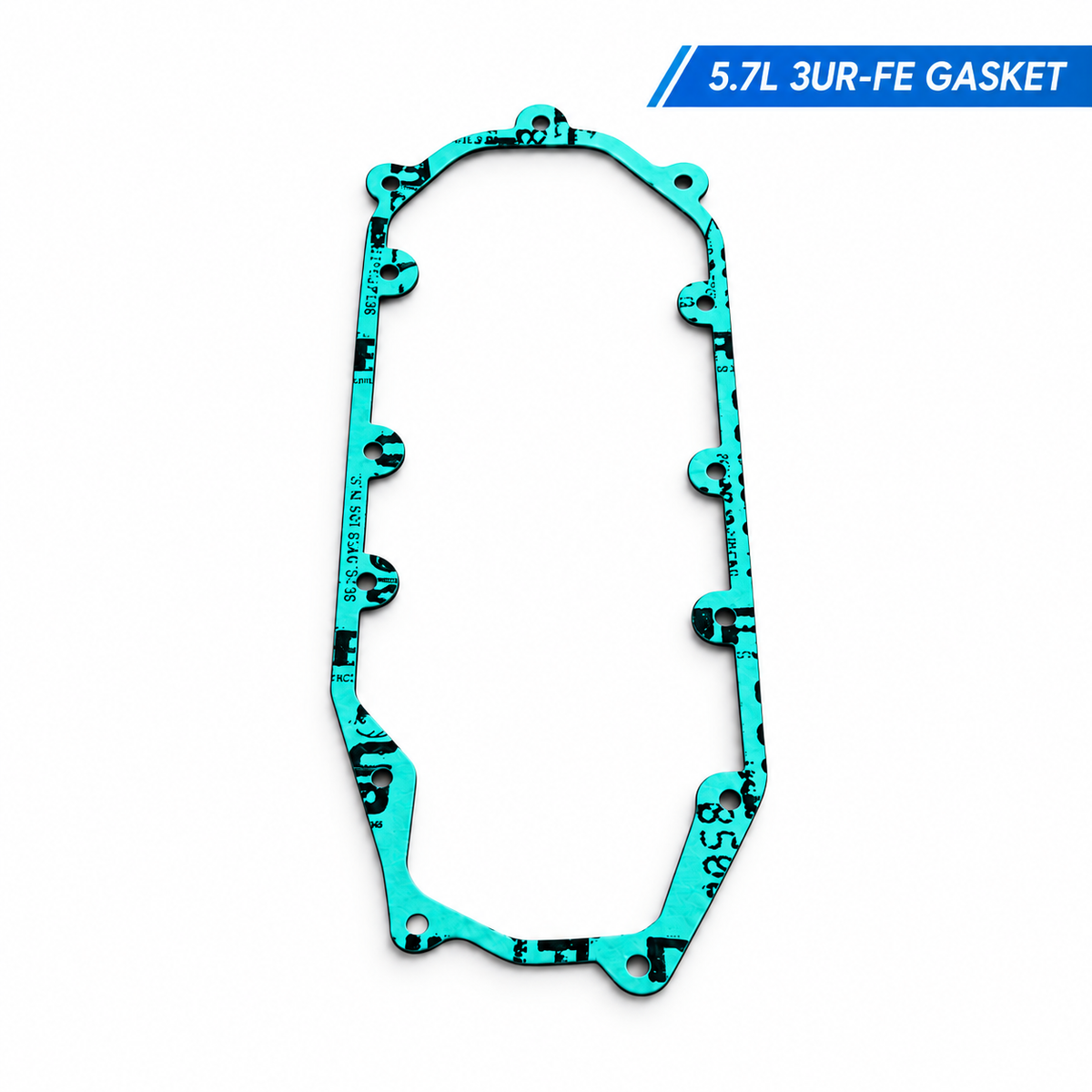

5.7L 3UR-FE Valley Guard Gasket
Precision-cut for the Toyota 5.7L 3UR-FE

Premium gasket material

Designed for valley plate coolant leak repairs

Includes 1 gasket only — OEM seals sold separately

Replacing a leaking valley plate on your Toyota Tundra, Sequoia, Land Cruiser, or Lexus LX570?

You already know the most frustrating part of this repair isn't the seal itself. It's everything you have to remove just to reach it.

Hidden beneath the intake manifold, the 3UR-FE valley heat exchanger cover relies on factory-applied liquid sealant. When that sealing interface begins leaking, accessing and resealing the cover can require hours of labor.

J2Hundy Valley Guard offers a different approach.

Our precision-cut Valley Guard gasket introduces a dedicated, coolant-resistant sealing layer between the valley cover and its mating surface, installed with a thin application of Permatex High Temp Gray RTV.

Instead of relying exclusively on liquid sealant, Valley Guard combines a purpose-built gasket with RTV for a gasket-assisted repair.

Designed for the 5.7L 3UR-FE. Built for mechanics who take their repairs seriously.

What You're Buying

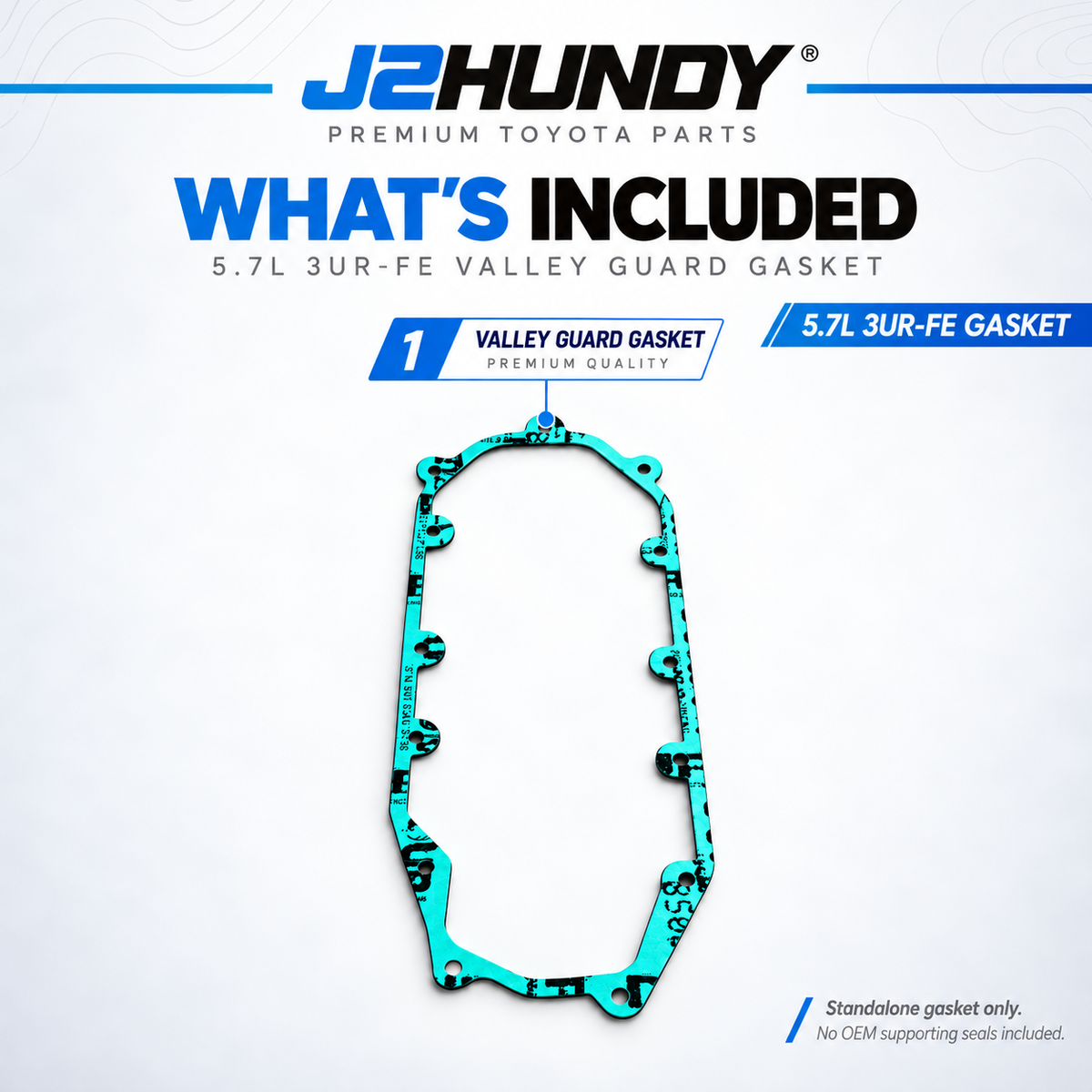

(1) J2Hundy Valley Guard Gasket — Toyota 5.7L 3UR-FE

This listing is for the individual Valley Guard gasket only.

Not included:

• Toyota OEM intake manifold gaskets

• Toyota OEM water pipe O-rings

• Permatex High Temp Gray RTV

• Coolant or additional repair components

Need the supporting seals? Our J2Hundy 5.7L Valley Guard Complete Service Kit includes this same gasket, two genuine Toyota intake manifold gaskets, and two genuine Toyota water pipe O-rings.

Why Choose Valley Guard Instead of RTV Alone?

The Factory Sealing Method

Toyota originally seals the 3UR-FE valley heat exchanger cover using formed-in-place liquid gasket material.

Years of heating, cooling, and exposure to engine coolant can eventually compromise the sealing interface, creating a coolant leak beneath the intake manifold.

The J2Hundy Valley Guard Difference

Rather than depending solely on a liquid-applied seal, Valley Guard introduces a precision-cut mechanical gasket between the mating surfaces.

Installed with the specified Permatex High Temp Gray RTV, the gasket provides a dedicated sealing material at the joint.

Why this approach matters:

• Purpose-built fitment: Cut specifically for the Toyota 5.7L 3UR-FE valley heat exchanger cover.

• Dedicated gasket layer: Adds a physical sealing material instead of relying on RTV alone.

• Coolant-resistant construction: Made from gasket material selected for engine coolant exposure.

• Ultra-thin design: 1/64-inch thickness for the intended sealing interface.

• Installation support: J2Hundy installation guidance helps explain the recommended preparation and sealing process.

Valley Guard is an aftermarket gasket-assisted sealing solution, not a factory Toyota gasket or a guarantee against future leaks.

Engineered for the Toyota 3UR-FE V8

The Valley Guard gasket is manufactured from premium Durlon 8500 gasket material, featuring aramid and inorganic fibers with a nitrile rubber binder.

This material was selected for its resistance to heat, coolant exposure, and demanding engine conditions.

Technical Specifications

Specification	J2Hundy Valley Guard
Engine application	Toyota 5.7L 3UR-FE V8
Installation location	Engine valley heat exchanger cover
Gasket material	Durlon 8500
Construction	Aramid and inorganic fibers with NBR binder
Material thickness	1/64 inch
Published material temperature rating	Up to 548°F (287°C)
Published material pressure rating	Up to 1,500 psi
Required sealant	Permatex High Temp Gray RTV, sold separately

Published material ratings describe the gasket material under specified conditions. They do not represent engine cooling-system operating specifications or guaranteed installed-joint performance.

Vehicle Fitment — Toyota & Lexus 5.7L 3UR-FE

J2Hundy Valley Guard is designed for the Toyota 5.7L 3UR-FE V8, used in:

• Toyota Tundra — 5.7L V8

• Toyota Sequoia — 5.7L V8

• Toyota Land Cruiser 200 Series — 5.7L V8

• Lexus LX570 — 5.7L V8

Important: Verify your engine code and valley cover configuration before ordering.

This gasket is not interchangeable with the J2Hundy 4.6L 1UR-FE Valley Guard gasket.

Unsure which gasket fits your vehicle? Contact J2Hundy before ordering.

Individual Gasket or Complete Service Kit?

Choose the Individual Valley Guard Gasket if:

• You already have new intake manifold gaskets and water pipe O-rings.

• You're a professional repair shop sourcing your own Toyota OEM components.

• You want the J2Hundy gasket without purchasing additional supporting seals.

• You're preparing for a valley plate repair and already have the other required parts.

Choose the Valley Guard Complete Service Kit if:

• You need replacement intake manifold gaskets.

• You need new coolant water pipe O-rings.

• You want the Valley Guard gasket and these genuine Toyota supporting seals in one purchase.

Both options include the same precision-cut J2Hundy Valley Guard gasket.

Installation Information

Experienced DIY or professional installation recommended.

The 3UR-FE valley heat exchanger cover is located beneath the intake manifold. Successful installation requires proper diagnosis, careful surface preparation, accurate gasket positioning, and adherence to applicable service procedures.

Before installation:

1. Confirm the coolant leak originates from the valley heat exchanger cover sealing interface.

2. Remove the original sealant and thoroughly clean the mating surfaces without damaging them.

3. Inspect the cover and mating surfaces for damage or irregularities.

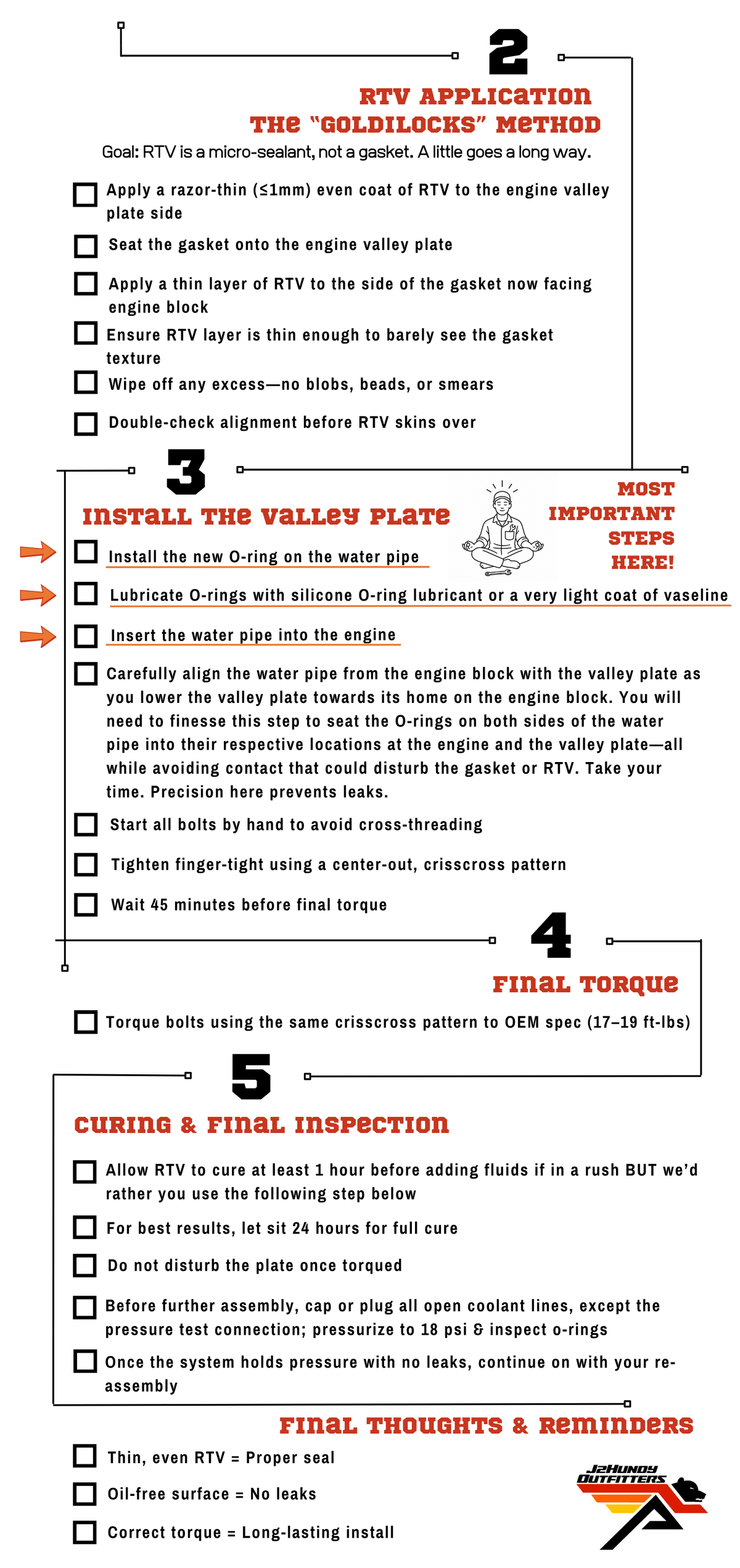

4. Follow the J2Hundy installation guide for gasket positioning and Permatex High Temp Gray RTV application.

5. Follow the applicable Toyota service specifications and sealant curing instructions.

6. Pressure-test the cooling system according to the appropriate vehicle service procedure before completing reassembly.

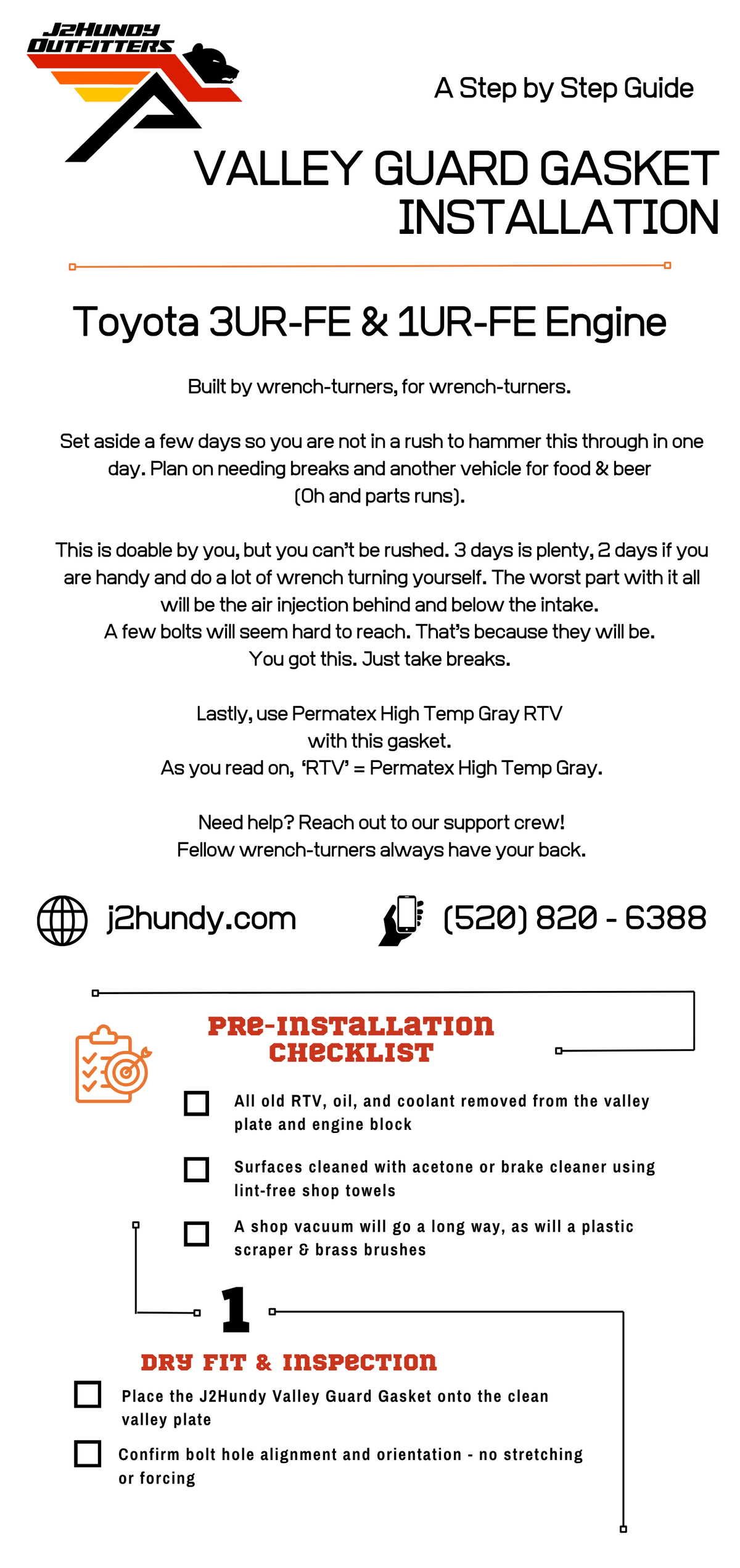

Installation guide: J2Hundy Valley Guard Technical Library

Important: RTV, intake manifold gaskets, water pipe O-rings, coolant, and other supporting components are sold separately.

Frequently Asked Questions

Will this gasket fix my Toyota 5.7L coolant leak?

Valley Guard is designed to seal the valley heat exchanger cover interface. If your coolant leak originates at that joint, it provides a gasket-assisted repair option. Coolant leaks can also originate from the water pump, hoses, pipes, and other cooling-system components, so proper diagnosis is essential.

Does Valley Guard replace RTV completely?

No. The J2Hundy installation method uses the Valley Guard gasket together with a controlled application of Permatex High Temp Gray RTV.

Is this an OEM Toyota gasket?

No. Valley Guard is a J2Hundy aftermarket gasket designed as an alternative sealing approach for the original Toyota valley cover.

Does this include the intake manifold gaskets and water pipe O-rings?

No. This listing contains one Valley Guard gasket only. The supporting Toyota OEM seals are available with our Valley Guard Complete Service Kit.

Can I install this gasket myself?

The repair is suitable for experienced DIY mechanics with the proper tools, technical information, and mechanical ability. Professional installation is recommended if you are unfamiliar with intake manifold removal or precision sealing work.

Will this fit the Toyota 4.6L V8?

No. The 4.6L 1UR-FE uses a different gasket design. Choose the J2Hundy 4.6L Valley Guard product for a verified compatible application.

Protect the Work. Seal the Valley. Get Back on the Road.

At J2Hundy Outfitters, we approach product development from the perspective of people who work on their own vehicles and understand what a difficult repair demands.

Valley Guard was developed around a simple idea: when a component takes substantial labor to access, the sealing solution deserves careful thought.

Whether you're repairing your own Land Cruiser, maintaining a high-mileage Tundra, or servicing a customer's Lexus, Valley Guard offers a purpose-built approach to sealing the 3UR-FE engine valley cover.

J2Hundy Valley Guard — Purpose-built sealing for the engines we depend on.
