Lexus GX460 4.6L Valley Plate Coolant Leak Repair Kit | J2Hundy Valley Guard

A purpose-built gasket solution for a repair you don't want to do twice.

Losing coolant from your Lexus GX460 4.6L V8? Discovering pink coolant residue near the back of the engine, but can't find an obvious leaking hose?

You may be dealing with a coolant valley plate leak — a known issue on the Toyota/Lexus 1UR-FE engine.

Hidden beneath the intake manifold, the engine valley heat exchanger cover relies on a liquid-applied sealant to keep coolant contained. When that sealing interface develops a leak, reaching it requires extensive disassembly.

That's exactly the type of repair the J2Hundy Valley Guard Complete Service Kit was designed for.

Our kit combines a precision-cut Valley Guard gasket with genuine Toyota supporting seals, giving you a dedicated gasket-assisted alternative to the original liquid-sealant-only approach.

One purpose-built kit. Fresh supporting seals. A more complete approach to the repair.

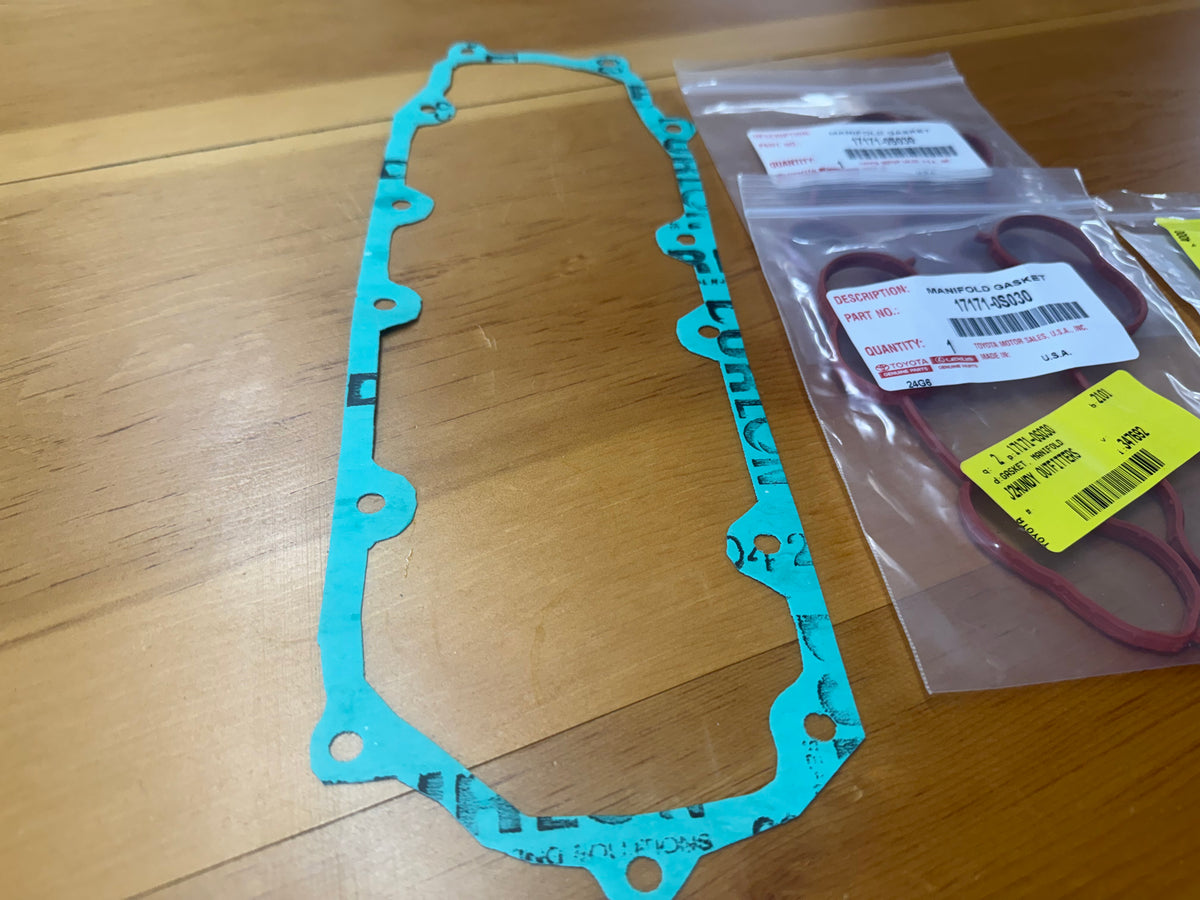

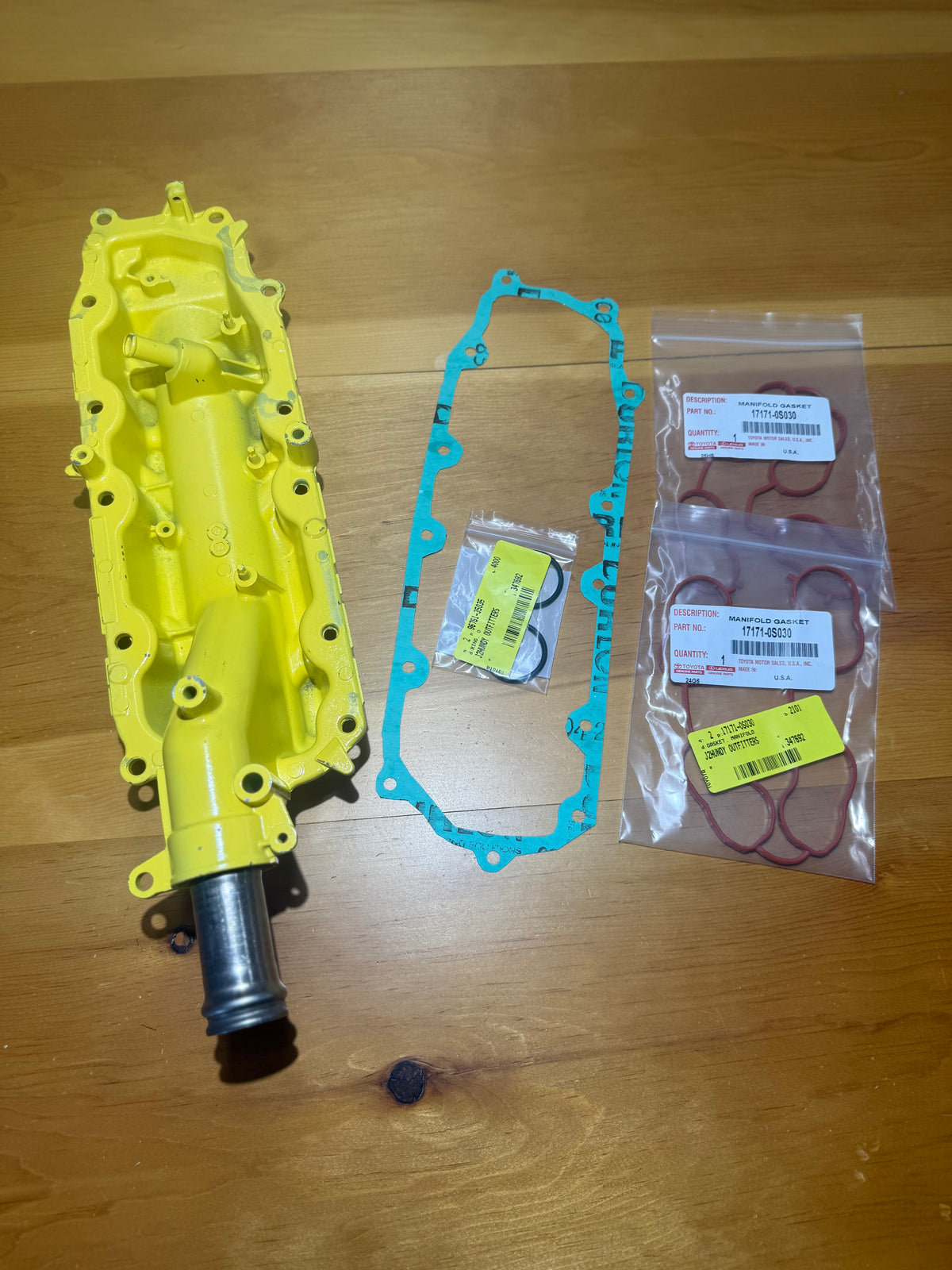

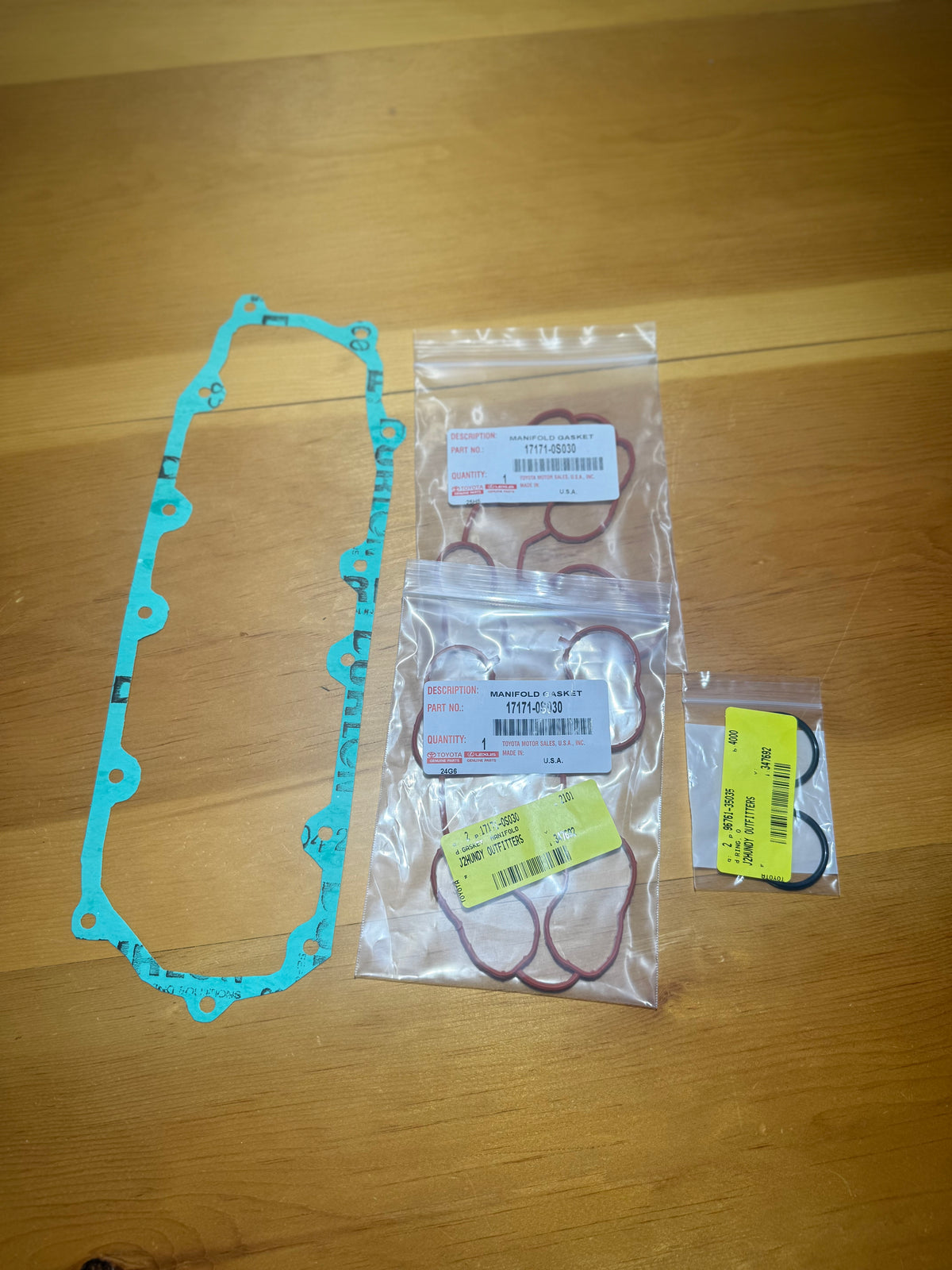

What's Included in the 4.6L Valley Guard Kit?

The J2Hundy Complete Service Kit contains:

• (1) J2Hundy 1UR-FE Valley Guard Gasket — Our precision-cut, coolant-resistant gasket designed for the 4.6L engine valley heat exchanger cover.

• Genuine Toyota OEM Intake Manifold Gaskets — New factory sealing components for intake manifold reassembly.

• Genuine Toyota OEM Water Pipe O-Rings — Fresh coolant pipe seals to replace applicable seals disturbed during service.

The kit brings together the Valley Guard gasket and essential supporting components so you're not relying on old intake or coolant pipe seals when reassembling the engine.

Important: Permatex High Temp Gray RTV is required for Valley Guard installation and is sold separately.

Why Choose Valley Guard Instead of RTV Alone?

The Original Factory Sealing Method

Toyota's original valley heat exchanger cover uses formed-in-place liquid gasket material between its mating surfaces.

After years of engine heat cycles and coolant exposure, the sealing interface may begin to leak.

Because the cover is buried beneath the intake manifold and associated components, accessing it can be a labor-intensive repair.

The J2Hundy Valley Guard Solution

Valley Guard adds a dedicated mechanical gasket layer to the sealing interface.

Our ultra-thin, precision-cut gasket is designed to work with a controlled application of Permatex High Temp Gray RTV.

Rather than depending on RTV alone, this installation method combines a purpose-built gasket material with liquid sealant.

What Makes Valley Guard Different?

• Engine-specific design: Precision-cut for the intended Toyota/Lexus 4.6L 1UR-FE valley cover.

• Dedicated gasket layer: Adds a physical sealing material between the mating surfaces.

• Coolant-resistant construction: Selected for engine coolant exposure and thermal cycling.

• Ultra-thin profile: Just 1/64-inch thick.

• Complete service approach: Includes genuine Toyota supporting seals for the associated reassembly work.

• Installation guidance: Access to J2Hundy instructions covering gasket installation and preparation.

Valley Guard is an aftermarket gasket-assisted sealing solution, not a genuine Toyota replacement gasket or a guarantee against future leaks.

Engineered for Demanding Toyota V8 Conditions

We selected a premium industrial gasket material rather than generic gasket sheet.

The Valley Guard gasket is manufactured from aramid and inorganic fibers with a nitrile rubber binder, chosen for chemical resistance and performance under demanding thermal conditions.

Technical Specifications

Specification	Valley Guard 4.6L
Engine family	Toyota/Lexus 4.6L 1UR-FE
Application	Engine valley heat exchanger cover
Material	Aramid and inorganic fiber with NBR binder
Thickness	1/64 inch
Published material temperature rating	Up to 548°F (287°C)
Published material pressure rating	Up to 1,500 psi
Installation sealant	Permatex High Temp Gray RTV

Material ratings describe the gasket stock, not the cooling system's operating conditions or guaranteed sealing performance in an installed engine.

Vehicle Compatibility — 4.6L 1UR-FE

Designed for compatible Toyota/Lexus vehicles equipped with the 4.6L 1UR-FE V8, including:

• Lexus GX460 — 4.6L 1UR-FE, subject to cover compatibility verification

• Other Toyota/Lexus 1UR-FE applications — Only where the valley cover and gasket configuration match

Please verify your engine code and valley cover configuration before purchasing.

Some Lexus 4.6L vehicles, including North American LS460 models, use the 1UR-FSE engine. Compatibility with those engines must be confirmed separately.

This kit is not interchangeable with the J2Hundy 5.7L 3UR-FE Valley Guard Kit.

Not sure which engine or kit you need? Contact J2Hundy before ordering. We'll help you determine which product is appropriate.

Complete Kit or Gasket Only — Which Should You Choose?

Choose the 4.6L Complete Service Kit if:

• You're repairing a diagnosed valley plate coolant leak.

• You're removing the intake manifold and need replacement supporting seals.

• You want the J2Hundy gasket and genuine Toyota supporting components in one purchase.

• You're a DIY mechanic or repair shop preparing for an engine valley service.

Choose the Individual 4.6L Valley Guard Gasket if:

• You already purchased the necessary Toyota OEM components.

• Your repair shop has the supporting seals in stock.

• You only need the purpose-built J2Hundy gasket.

Both options contain the same 4.6L Valley Guard gasket.

Installation & Important Information

Professional installation or experienced DIY mechanical skills are recommended.

The engine valley is not easily accessible. Proper diagnosis, surface preparation, and careful installation are essential.

For a successful repair:

1. Confirm that the coolant leak originates from the engine valley cover sealing interface.

2. Thoroughly clean and inspect the mating surfaces.

3. Verify the Valley Guard gasket fits the intended cover.

4. Follow J2Hundy's instructions for gasket placement and application of Permatex High Temp Gray RTV.

5. Replace the applicable intake manifold gaskets and coolant pipe O-rings included in the kit.

6. Follow the engine-specific Toyota/Lexus service procedures for fastener torque, sealant curing, and cooling-system pressure testing.

Installation instructions: J2Hundy Valley Guard Technical Library

Shipping information: Genuine Toyota components are subject to parts availability. Complete kits may occasionally require approximately one additional week before shipment.

Frequently Asked Questions

What are the symptoms of a Lexus GX460 valley plate coolant leak?

Common symptoms can include unexplained coolant loss, dried pink coolant residue, or coolant appearing near the rear of the engine. Other cooling-system leaks can produce similar symptoms, so proper diagnosis is important.

Does Valley Guard replace the factory RTV sealant?

Valley Guard provides a dedicated gasket layer but is installed with Permatex High Temp Gray RTV. It is not intended to be installed dry unless J2Hundy's instructions explicitly specify otherwise.

Are the included gaskets genuine Toyota parts?

The intake manifold gaskets and water pipe O-rings are genuine Toyota OEM components. The Valley Guard gasket itself is a J2Hundy aftermarket product.

Will this kit fit my Lexus LS460?

Fitment depends on the engine variant and valley cover configuration. Many LS460 vehicles use the 1UR-FSE rather than the 1UR-FE. Contact J2Hundy to verify compatibility before ordering.

Does the kit include everything required to complete the repair?

It includes the listed sealing components. RTV, coolant, tools, and any additional vehicle-specific replacement parts are sold separately.

Can I install this kit myself?

Experienced DIY mechanics can perform the repair with appropriate tools and service information. Because intake manifold removal and precise sealing work are required, professional installation is a good option for less-experienced owners.

Built for People Who Take Their Repairs Seriously

At J2Hundy Outfitters, we approach parts development from the perspective of people who actually work on, maintain, and depend on their vehicles.

The Valley Guard gasket was developed around a simple principle: when accessing a component requires substantial labor, the sealing solution deserves serious consideration.

Our 4.6L Complete Service Kit combines purpose-built gasket material with genuine Toyota supporting components so you can approach the repair with confidence.

Whether you're keeping your GX460 on the road or servicing a customer's Toyota V8, Valley Guard gives you another way to address the engine valley cover sealing interface.

J2Hundy Valley Guard — Protect the work. Seal the valley. Get back on the road.
